Corrosion Resistant Long Fiber Geotextile WIth Acid And Alkali Resistant

Corrosion Resistant Long Fiber Geotextile WIth Acid And Alkali Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: 100-800g/㎡
Material: Polyester/Polypropylene
Width: 1.0-6.6m
Application: Road Construction/Drainage/Reinforcement
Length: 50m-200m
Color: Black, White,Green,Blue, Custom
Width Variation : -0.5%
CBR Burst Strength: 0.8-7.9KN≥
Vertical Permeability Coefficient (cm/s): Kx(10ˉ1-10ˉ3) K=1.00-9.90
Highlight:

Corrosion Resistant Long Fiber Geotextile

,

Alkali Resistant Long Fiber Geotextile

,

Acid Resistant Long Fiber Geotextile

Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

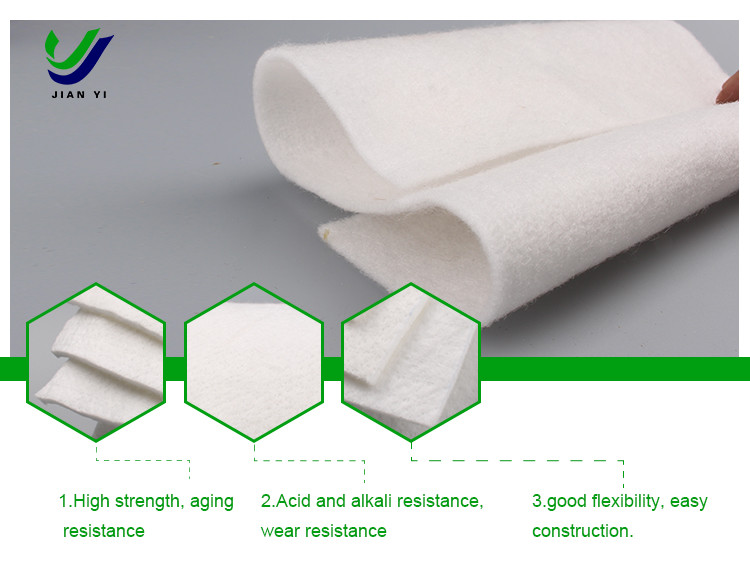

Acid And Alkali Resistant High Temperature Corrosion Resistant High Strength Geotextile

Product Introduction
    Long fiber geotextile has high strength and durability, even in wet and dry conditions can maintain sufficient strength and elongation. In addition, it also has good corrosion resistance, can resist the erosion of soil and water with different pH levels, and also has excellent water permeability and microbial resistance.

Product Properties
1. High temperature resistance: able to withstand high temperatures of up to 230 ° C, even at such high temperatures, it can still maintain the structural integrity and original physical properties.
2. Corrosion resistance: It has good corrosion resistance to common chemicals in soil, and can also resist the corrosion of organic solvents such as gasoline and diesel.
3. Durability: Filament geotextile has excellent creep resistance, which means that it can maintain its structure and performance even when stressed for a long time.
4. Mechanical properties: Good mechanical functions, including bursting strength, ductility, etc., make it able to adapt to irregular base surfaces and provide stable support.
5. Water permeability: It has good plane drainage and vertical water permeability, which is conducive to controlling the water drainage of the surface of geotechnical engineering.


Product Application
    Puncture proof long fiber geotextile has been widely used in many fields because of its unique properties. It can be used for reinforcement of railway roadbed, maintenance of highway pavement, protection of sports hall, dam, isolation of hydraulic construction, tunnel, coastal beach, reclamation and other projects. Especially in the need for additional anti-puncture protection, such as landfill, thermal power plant ash dam, tailings dam isolation and seepage prevention, anti-puncture long fiber geotextile is becoming the preferred material.

Product Specification
*  Grams/㎡: 100g~800g/㎡
*  Width: 1.0m~6.60m
*  Roll length: 50m~200m (customized request accept)
PS: Customized request accept for all above.


Product Specification and Technical Index(GB/T 17639—2023)

Item



Corrosion Resistant Long Fiber Geotextile WIth Acid And Alkali Resistant 0 Index







Nominal strength/(KN/m)
6912182430364854
1.00Longitudinal And Transverse Tensile Strength(KN/m≥)6.09.012.018.024.030.036.048.054.0
2.00Elongation Under Maximum Load In Vertical And Horizontal Direction(%)30~80
3.00CBR Burst Strength ( KN≥)0.91.61.92.93.95.36.47.98.5
4.00Tearing Strength (KN,≥,LD/TD)0.150.220.290.430.570.710.831.101.25
5.00Sieve SizeO90,O95 (mm)0.05~0.30
6.00Vertical Permeability Coefficient (cm/s)Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00Width Variation (%≥)-0.5
8.00Weight Variation (%≥)-5
9.00Thickness Deviation Rate(%≥)-10
10.00Coefficient Of Thickness Variation(%≤)10
11.00Dynamic PunchHole Diameter(mm≤)37.033.027.020.017.014.011.09.07.0
12.00Longitudinal And Transverse Breaking Strength(KN)≥0.30.50.71.11.41.92.43.03.5
13.00Uv resistance (Xenon Arc Lamp Method)Vertical And Horizontal Strength Retention(%≥)70
14.00Uv resistance (Fluorescent UV Lamp Method)Vertical And Horizontal Strength Retention(%≥)80
