Features

Specifications

Application: Landfill, Mining, Pond Liner, Etc.

Sieve SizeO90,O95: 0.07mm-0.20mm

Vertical Permeability Coefficient (cm/s): Kx(10ˉ1-10ˉ3) K=1.00-9.90

Surface: Textured

Width Ability: 1.0m-6.6m

Color: Black, White，Green,Blue， Custom

Chemical Resistance: Excellent

Gram Weight: 100-800g/㎡

Roll Length: 50m-200m

Highlight:

Corrosion Resistance Long Fiber Geotextile

100g/M2 Long Fiber Geotextile

800g/M2 High Strength Geotextile

Basic Infomation

Place of Origin: China

Brand Name: JianYi

Certification: ISO9001

Payment & Shipping Terms

Gallery

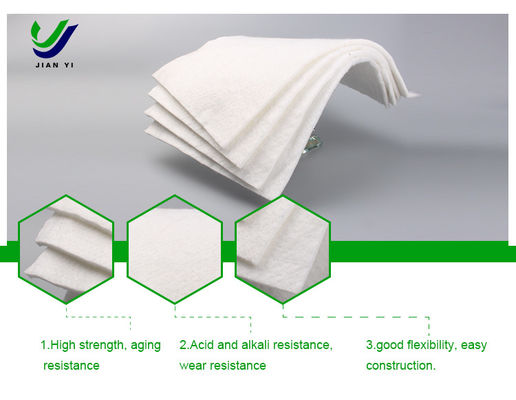

High Strength Long Fiber Geotextile 100-800g/M2 With Corrosion Resistance

Product Description

High Strength Geotextile With Good Corrosion Resistance, High Temperature Resistance And Water Permeability

Product Introduction

Long fiber geotextile is an important geosynthetic material, which is made directly by polyester method through spinning and needle consolidation, and has a three-dimensional structure. This material is available in sizes ranging from 80-800g/m² and is suitable for a variety of applications in geotechnical and civil engineering.

Product Properties

Good water permeability, corrosion resistance, anti-aging, resistance to external construction damage, high temperature resistance, light resistance.

Product Application

Long fiber geotextile has many uses, including the filtration of dam and slope protection, the isolation of channels and seepage prevention; Foundation isolation, reverse filtration, drainage, slope, retaining wall, pavement reinforcement and drainage of roads, railways and airport runways; Port engineering soft foundation treatment, beach embankment, harbor pier and breakwater reinforcement, drainage, etc.

Product Specification

* Grams/㎡: 100g~800g/㎡
* Width: 1.0m~6.60m
* Roll length: 50m~200m (customized request accept)
PS: Customized request accept for all above.

Product Specification and Technical Index(GB/T 17639—2023)

Item			Index
			Nominal strength/(KN/m)
			6	9	12	18	24	30	36	48	54
1.00	Longitudinal And Transverse Tensile Strength(KN/m≥)		6.0	9.0	12.0	18.0	24.0	30.0	36.0	48.0	54.0
2.00	Elongation Under Maximum Load In Vertical And Horizontal Direction(%)		30~80
3.00	CBR Burst Strength ( KN≥)		0.9	1.6	1.9	2.9	3.9	5.3	6.4	7.9	8.5
4.00	Tearing Strength (KN,≥,LD/TD)		0.15	0.22	0.29	0.43	0.57	0.71	0.83	1.10	1.25
5.00	Sieve SizeO90,O95 (mm)		0.05~0.30
6.00	Vertical Permeability Coefficient (cm/s)		Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00	Width Variation　(％≥)		-0.5
8.00	Weight Variation (%≥)		-5
9.00	Thickness Deviation Rate(%≥)		-10
10.00	Coefficient Of Thickness Variation(%≤)		10
11.00	Dynamic Punch	Hole Diameter(mm≤)	37.0	33.0	27.0	20.0	17.0	14.0	11.0	9.0	7.0
12.00	Longitudinal And Transverse Breaking Strength(KN)≥		0.3	0.5	0.7	1.1	1.4	1.9	2.4	3.0	3.5
13.00	Uv resistance (Xenon Arc Lamp Method)	Vertical And Horizontal Strength Retention(%≥)	70
14.00	Uv resistance (Fluorescent UV Lamp Method)	Vertical And Horizontal Strength Retention(%≥)	80
