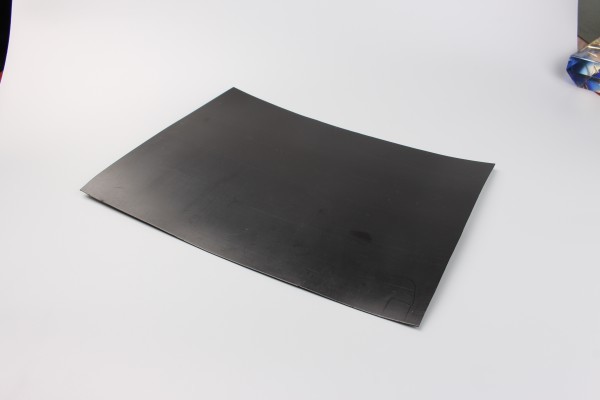

Length 30m-100m HDPE Smooth Geomembrane Customizable For Landfill / Dam

Length 30m-100m HDPE Smooth Geomembrane Customizable For Landfill / Dam
Features Gallery Product Description Request A Quote
Features
Specifications
Material: High Density Polyethylene (HDPE)
Color: Black, Green, Custom
Temperature Range: -70°C To 80°C
Thickness: 0.3mm-3.0mm
Elongation At Break: 700%
Density: 0.939g/cm3
Uv Resistance: Excellent
Width: 1m-9m
Chemical Resistance: Excellent
Length: 30m-100m
Puncture Strength: 240-960N
Application: Landfill,dam
Type: Geomembranes
Highlight:

Landfill HDPE Smooth Geomembrane

,

Dam HDPE Smooth Geomembrane

,

Customizable HDPE Smooth Geomembrane
Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

Customizable HDPE Smooth Geomembrane for Your Specific Needs and Requirement



Product Introduction

    The high density polyethylene resin is a waterproof barrier material, which has excellent environmental stress cracking resistance, low temperature resistance, aging resistance and corrosion resistance.



Product Properties

HDPE geomembrane is widely used in various fields due to its excellent chemical stability and mechanical strength. It can resist the corrosion of various chemicals, including acids, alkalis, salts, etc. In addition, it has good tensile strength and elongation at break, making it suitable for use under various harsh geological and climatic conditions.



Product Application

The main applications of HDPE geomembrane include but are not limited to the following aspects:

Landfill Liner: Prevents leachate from landfills from polluting groundwater.

  • Solid Waste Landfill Imperviousness: Used for the impervious treatment of solid waste landfills.

  • Wastewater Treatment Plant Imperviousness: Preventing wastewater seepage to protect the environment.

  • Artificial Lake Waterproofing: For waterproofing treatment of artificial lakes.

  • Tailings Processing: Preventing tailings wastewater from polluting the environment.

  • Hydraulic Engineering: Such as dams, cofferdams, canals, reservoirs, etc.



Product Specification

*  Thickness(mm): 0.30mm~3.00mm
*  Width:1m~9m
*  Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.



Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)

Specification 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm Remark
Item
Thickness (mm) 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm 3.00mm
Density (g/c㎡,≥) 0.939
Tensile Properties
Yield Strength (N/mm,LD/TD) 11 15 18 22 29 37 44
Breaking Strength (N/mm,LD/TD) 20 27 33 40 53 67 80
Yeild Elongation Rate (%) 12
Breaking Elongation Rate (%) 700
Rectangular Tear Strength (N) 93 125 156 187 249 311 374
Puncture Strength (N) 240 320 400 480 640 800 960
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method)		 300
Carbon Black
Carbon Black Content(Rang) (%) 2.0~3.0
Carbon Black Dispersion Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min) 100
High Pressure OIT (min) 400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%) 55
90 days after baking, the hight pressure OIT retention(%) 80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%) 50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%) 50
-70℃ The Low Temperature Embrittlement Performance mpact Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) ≤1.0X10-13
Dimensional Stability ±2



Product Specification and Technical Index (GH-1 & GB/T 17643-2011)

 Specification
Item		 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00 Remark
Thickness (mm) 0.30 0.50 0.75 1.00 1.25 1.50 2.00 2.50 3.00
Density (g/c㎡,≥) 0.94
Tensile Yield Strength (N/mm, ≥,LD/TD) 4 7 10 13 16 20 26 33 40
Tensile Breaking Strength (N/mm, ≥,LD/TD) 6 10 15 20 25 30 40 50 60
Yield Elongation Rate (%,≥,LD/TD) - - - 11
Breaking Elongation Rate (%,≥,LD/TD) 600
Rectangular Tear Load (N,≥,LD/TD) 34 56 84 115 140 170 225 280 340
Puncture Strength (N,≥) 72 120 180 240 300 360 480 600 720
Carbon Black Content (%) 2.0~3.0
Carbon Black Dispersion Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not allowed
