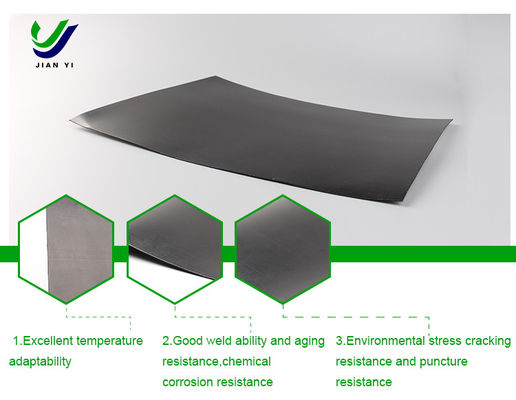

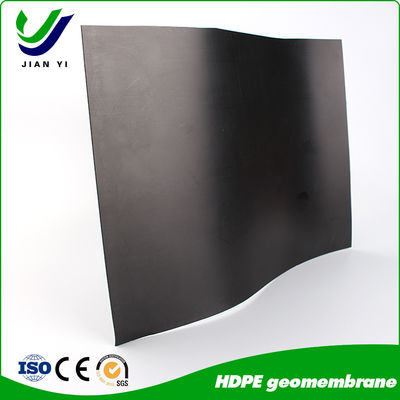

Tailings Management Solution HDPE Smooth Geomembrane with Excellent Chemical Resistance and High Temperature Resistance

Product Overview
Our HDPE Geomembrane is a robust, engineered solution designed specifically for the harsh demands of mining waste management. Ideal for tailings ponds, heap leach pads, and waste rock containment, this geomembrane provides superior chemical resistance, puncture protection, and long-term durability to prevent environmental contamination and comply with stringent industry regulations.

Key Features

1. Unmatched Chemical Resistance

   • Resists corrosive acids, alkalis, heavy metals, and leaching agents commonly found in mining waste (e.g., cyanide, sulfuric acid).

   • Maintains integrity even when exposed to aggressive pH levels (1–14).

2. Extreme Durability

   • Reinforced with high tensile strength (≥30 MPa) to withstand heavy loads, sharp rock abrasion, and mechanical stress.

   • UV-stabilized with carbon black additives for prolonged outdoor exposure without degradation.

3. Zero Permeability Guarantee

   • Ultra-low permeability coefficient (<1×10⁻¹³ cm/s) ensures complete containment of toxic liquids and slurries.

   • Heat-fused seams create leak-proof barriers, validated by spark testing or air lance inspection.

4. Environmental Compliance

   • Meets EPA, MSHA, and global mining waste containment standards.

   • Prevents groundwater contamination and protects ecosystems from hazardous leachates.

5. Cost-Effective Installation

   • Lightweight rolls (up to 8m width) enable rapid deployment over large areas, reducing downtime.

   • Compatible with geotextiles or clay layers for hybrid liner systems.

Technical Specifications

• Material: High-Density Polyethylene (HDPE) with 2.5–3.5% carbon black

• Thickness: 1.5mm–3.0mm (customizable for project requirements)

• Tensile Strength: ≥30 MPa (MD & TD)

• Puncture Resistance: ≥500 N (ASTM D4833)

• Elongation at Break: ≥700%

• Temperature Tolerance: -60°C to +100°C

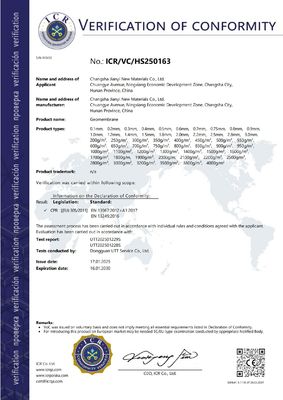

• Certifications: ASTM GRI-GM13, ISO 9001, EPA Subtitle D, MSHA Part 48

Applications

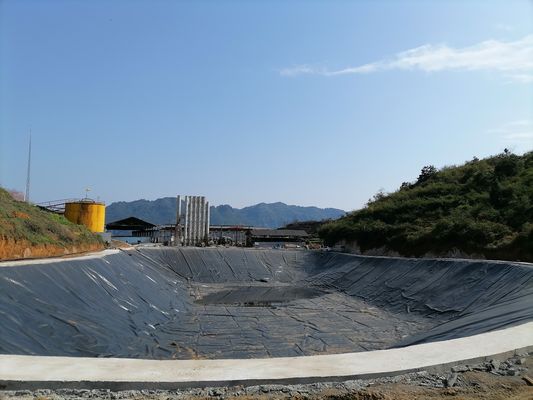

• Tailings storage facilities (TSFs) and slurry containment

• Heap leach pads for mineral extraction

• Waste rock dump liners and caps

• Acid mine drainage (AMD) containment

• Secondary containment for hazardous materials

Why Choose Our Mining Geomembrane?
✅ Engineered for Mining Hazards: Specially formulated to resist sulfide oxidation, thermal cycling, and dynamic loads.
✅ Long-Term Performance: 50+ year service life with minimal maintenance.
✅ Custom Solutions: Available in textured surfaces for enhanced slope stability or friction resistance.
✅ Global Trust: Deployed in copper, gold, coal, and lithium mining operations worldwide.

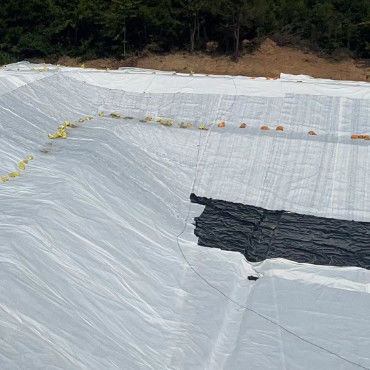

Installation Guidelines

1. Prepare a compacted, smooth subgrade free of sharp protrusions.

2. Weld seams using dual-track hot wedge equipment for fail-safe joints.

3. Anchor perimeter into trenches and backfill with compacted soil.

4. Conduct rigorous QA/QC testing (e.g., destructive/non-destructive seam tests).

Request a Quote or Technical Support
Safeguard your mining operations and the environment with our certified HDPE geomembranes. Contact us for site-specific engineering support, samples, or volume discounts!
