Long Fiber Geofabric Roll Heat And Light Resistant For Various Soils

Long Fiber Geofabric Roll Heat And Light Resistant For Various Soils
Features Gallery Product Description Request A Quote
Features
Specifications
Water Permeability: Good
Durability: Long-term
Application: Road Construction
Acid And Alkali Resistance: Excellent
Package: Rolls
Uv Resistance: Excellent
Width: 1.0-6.6m
Color: Black, White,Green,Blue, Custom
Weight: 100-800g/㎡
Sieve Size O90,O95: 0.07mm-0.20mm
Highlight:

Long Fiber Geofabric Roll

,

Heat Resistant Geofabric Roll

,

Soils Long Fiber Geofabric Roll

Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001
Payment & Shipping Terms
Product Description

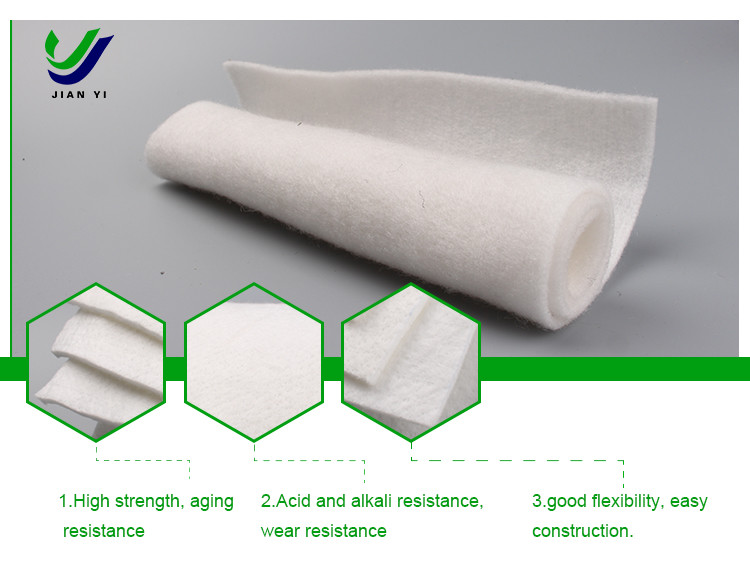

Long Fiber Geotextile High-Temperature And Light Resistant For Various Soils

Product Introduction
    Long fiber geotextile is a kind of geosynthetic material which is made directly by polyester method through spinning and needle consolidation. Its product specifications can be arbitrarily selected from 100-800 grams per square meter, with a three-dimensional structure. The preparation method of this material is the method of polyester filament mesh and consolidation.

Product Properties
    Long fiber geotextile has good mechanical properties, good water permeability, and can resist corrosion and aging. It can adapt to the uneven base, resist the damage of construction external force, creep becomes smaller, and can maintain the original function even under long-term load. In addition, it also has high temperature resistance, light resistance, and long-term corrosion resistance to a variety of natural soils, moisture and microorganisms.

Product Application
    Long fiber geotextiles are widely used in many fields, including the filtration of dam and slope protection, the isolation and seepage prevention of channels in water conservancy projects. The foundation isolation, reverse filtration, drainage, soil slope, retaining wall and pavement reinforcement and drainage of roads, railways and airport runways; Soft foundation treatment of port works, beach embankment, reinforcement and drainage of harbour piers and breakwaters, etc.

Product Specification
*  Grams/㎡: 100g~800g/㎡
*  Width:2m~6m
*  Roll length:50m~100m
PS: Customized request accept for all above.


 Product Specification and Technical Index(GB/T 17639—2023)

                                 Item



Long Fiber Geofabric Roll Heat And Light Resistant For Various Soils 0                                        Index







Nominal strength/(KN/m)
6 9 12 18 24 30 36 48 54
1.00 Longitudinal And Transverse Tensile Strength(KN/m≥) 6.0 9.0 12.0 18.0 24.0 30.0 36.0 48.0 54.0
2.00 Elongation Under Maximum Load In Vertical And Horizontal Direction(%) 30~80
3.00 CBR Burst Strength ( KN≥) 0.9 1.6 1.9 2.9 3.9 5.3 6.4 7.9 8.5
4.00 Tearing Strength (KN,≥,LD/TD) 0.15 0.22 0.29 0.43 0.57 0.71 0.83 1.10 1.25
5.00 Sieve SizeO90,O95 (mm) 0.05~0.30
6.00 Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00 Width Variation (%≥) -0.5
8.00 Weight Variation (%≥) -5
9.00 Thickness Deviation Rate(%≥) -10
10.00 Coefficient Of Thickness Variation(%≤) 10
11.00 Dynamic Punch Hole Diameter(mm≤) 37.0 33.0 27.0 20.0 17.0 14.0 11.0 9.0 7.0
12.00 Longitudinal And Transverse Breaking Strength(KN)≥ 0.3 0.5 0.7 1.1 1.4 1.9 2.4 3.0 3.5
13.00 Uv resistance (Xenon Arc Lamp Method) Vertical And Horizontal Strength Retention(%≥) 70
14.00 Uv resistance (Fluorescent UV Lamp Method) Vertical And Horizontal Strength Retention(%≥) 80
