Long Fiber Geotextile The Perfect Combination of Filtering Isolation and Drainage for Heavy Metal Smelting Treatment

350 ㎡

MOQ

Inquire anytime

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: PET Polyester Chips

Width: 1.0m~6.6m

Length: 1.0m~6.6m(Could Be Customised)

Highlight:

Drainage Long Fiber Geotextile

Filtering Isolation Long Fiber Geotextile

Basic Infomation

Place of Origin: Hunan China

Brand Name: JIANYI

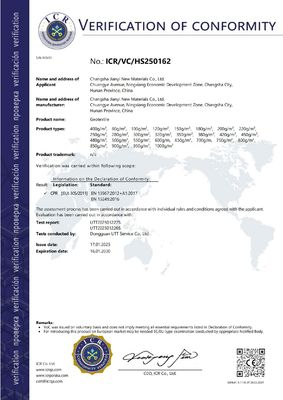

Certification: CE&ISO

Payment & Shipping Terms

Packaging Details: Packed in double woven geotextile and strength belt.

Delivery Time: 5-8workdays

Payment Terms: T/T , L/C

Supply Ability: 1200t/month

Gallery

Long Fiber Geotextile The Perfect Combination of Filtering Isolation and Drainage for Heavy Metal Smelting Treatment

Product Description

Product overview

PET polyester slices are extruded by a heated melting screw, spun and drawn into a network shape, and then
The needle punching process makes the fibers intertwined, entangled and fixed to standardize the fabric to meet different uses.
Use requirements

Application

Technical Specification

Product Performance Parameters (GB/T 17639-2008)
Item	Indicator
Nominal Tensile Strength/(kN/m)		4.5	7.5	10	15	20	25	30	40	50
1	Nominal Tensile Strength/(kN/m) ≥	4.5	7.5	10	15	20	25	30	40	50
2	Elongation at Standard Strength in Longitudinal and Transverse Directions/%	40~80
3	CBR Bursting Strength/kN ≥	0.8	1.6	1.9	2.9	3.9	5.3	6.4	7.9	8.5
4	Tearing Strength in Longitudinal and Transverse Directions/kN ≥	0.14	0.21	0.28	0.42	0.56	0.7	0.82	1.1	1.25
5	Equivalent Aperture Q₂(Q) /mm	0.05~0.20
6	Vertical Permeability Coefficient/ (cm/s)	Kx(10⁻¹⁰·10⁻⁵) Includ: K=1.0~9.9
7	Thickness/mm ≥	0.8	1.2	1.6	2.2	2.8	3.4	4.2	5.5	6.8
8	Spiral Deviation/%	-0.5
9	Mass per Unit Area Deviation/%	-5

Production

Import raw materials, automated equipment production, and professional laboratory equipment testing in accordance with Qatar TR131 indicators

Package

Paper tube rewinding, black waterproof film packaging, neat and uniform rewinding, PVC pipe sealing, practical and beautiful.
