Eco-Friendly Long Fiber Geotextile The Perfect Choice for Infrastructure Construction Projects Length 50m-200m

350㎡
MOQ
Inquire anytime
Price
Eco-Friendly Long Fiber Geotextile The Perfect Choice for Infrastructure Construction Projects Length 50m-200m
Features Gallery Product Description Chat Now
Features
Specifications
Raw Material & Physical Property: 100% Polyester Filament Non-woven Injection
Weight: 100-800g/㎡
Length: 50m-200m
Width: 1m-6.6m
Color: Black, White,Green,Blue, Custom
Application: Road Construction, Railway, Landfill, Etc.
Sieve SizeO90,O95: 0.07mm-0.20mm
CBR Burst Strength: ≥0.8-7.9KN
Breaking Strength (KN/m,≥,LD/TD): 4.5-40
Highlight:

200m Long Fiber Geotextile

,

Infrastructure Construction Long Fiber Geotextile

,

Eco-Friendly Long Fiber Geotextile

Basic Infomation
Place of Origin: China
Brand Name: JianYi
Certification: ISO9001 CE
Payment & Shipping Terms
Delivery Time: 5-8workdays
Payment Terms: T/T
Supply Ability: 1200t/month
Product Description

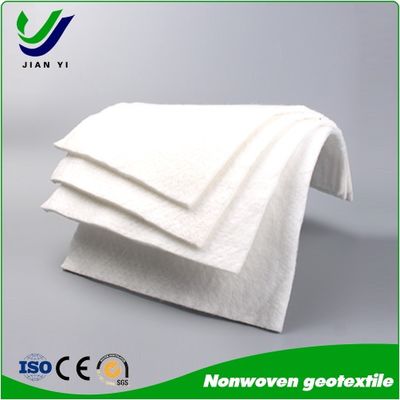

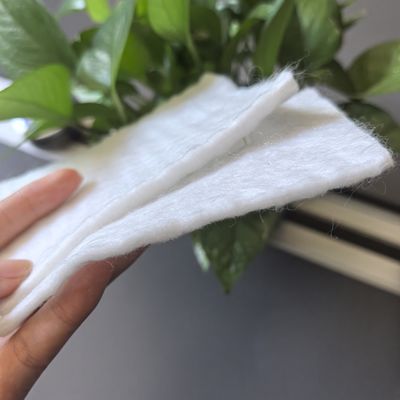

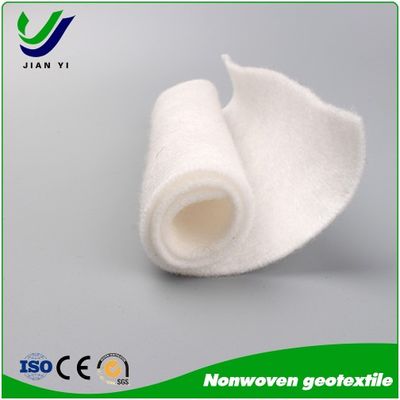

Our long-fiber nonwoven geotextile is engineered from 100% virgin polypropylene fibers, utilizing advanced needle-punching technology to create a high-strength, permeable fabric. Designed for durability and performance, it excels in separation, filtration, drainage, and erosion control applications across infrastructure, environmental, and construction projects.



Key Features



High Tensile Strength – Resists mechanical stress during installation and long-term use.



Excellent Permeability – Optimal water flow while preventing soil particle migration



UV & Chemical Resistant – UV-stabilized for extended outdoor exposure; inert to most soils and chemicals.



Puncture Resistance – Withstands heavy loads and sharp aggregates.



Uniform Structure – Nonwoven design ensures consistent performance.





Applications



Road & Railway Construction: Soil stabilization, base reinforcement.



Landfills & Erosion Control: Liner protection, slope stabilization.



Drainage Systems: Subsurface water management.



Agriculture & Landscaping: Weed barrier, pond liners.



Advantages Over Short-Fiber Geotextiles



Higher elongation for better conformability to uneven surfaces.



Superior hydraulic properties due to interconnected fiber network.



Longer service life under dynamic loads.



Specification



Product Specification and Technical Index (National standard: GB/T 17639—2023)

Item



Eco-Friendly Long Fiber Geotextile The Perfect Choice for Infrastructure Construction Projects Length 50m-200m 0 Index







Nominal strength/(KN/m)
6 9 12 18 24 30 36 48 54
1.00 Longitudinal And Transverse Tensile Strength(KN/m≥) 6.0 9.0 12.0 18.0 24.0 30.0 36.0 48.0 54.0
2.00 Elongation Under Maximum Load In Vertical And Horizontal Direction(%) 30~80
3.00 CBR Burst Strength ( KN≥) 0.9 1.6 1.9 2.9 3.9 5.3 6.4 7.9 8.5
4.00 Tearing Strength (KN,≥,LD/TD) 0.15 0.22 0.29 0.43 0.57 0.71 0.83 1.10 1.25
5.00 Sieve SizeO90,O95 (mm) 0.05~0.30
6.00 Vertical Permeability Coefficient (cm/s) Kx(10ˉ1-10ˉ3) K=1.00-9.90
7.00 Width Variation (%≥) -0.5
8.00 Weight Variation (%≥) -5
9.00 Thickness Deviation Rate(%≥) -10
10.00 Coefficient Of Thickness Variation(%≤) 10
11.00 Dynamic Punch Hole Diameter(mm≤) 37.0 33.0 27.0 20.0 17.0 14.0 11.0 9.0 7.0
12.00 Longitudinal And Transverse Breaking Strength(KN)≥ 0.3 0.5 0.7 1.1 1.4 1.9 2.4 3.0 3.5
13.00 Uv resistance (Xenon Arc Lamp Method) Vertical And Horizontal Strength Retention(%≥) 70
14.00 Uv resistance (Fluorescent UV Lamp Method) Vertical And Horizontal Strength Retention(%≥) 80



Installation Tips



Overlap seams by 30–50 cm or sew/thermally bond for critical projects.



Avoid dragging over sharp surfaces; anchor edges during placement.

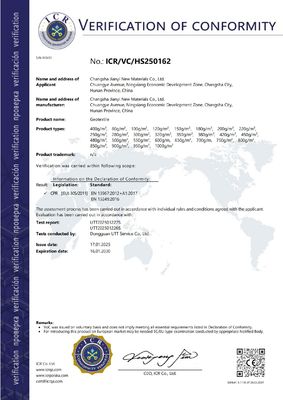

Certifications

ISO 9001, CE,



Packaging & Ordering

Standard rolls in shrink-wrap with UV-protective coating. Custom sizes and weights available.



Request a quote today! Optimize your project’s performance with our high-quality geotextile solutions.
